7.4 kW EV Charger with Socket and RFID

Description

Ultimate Flexibility with Universal Socket

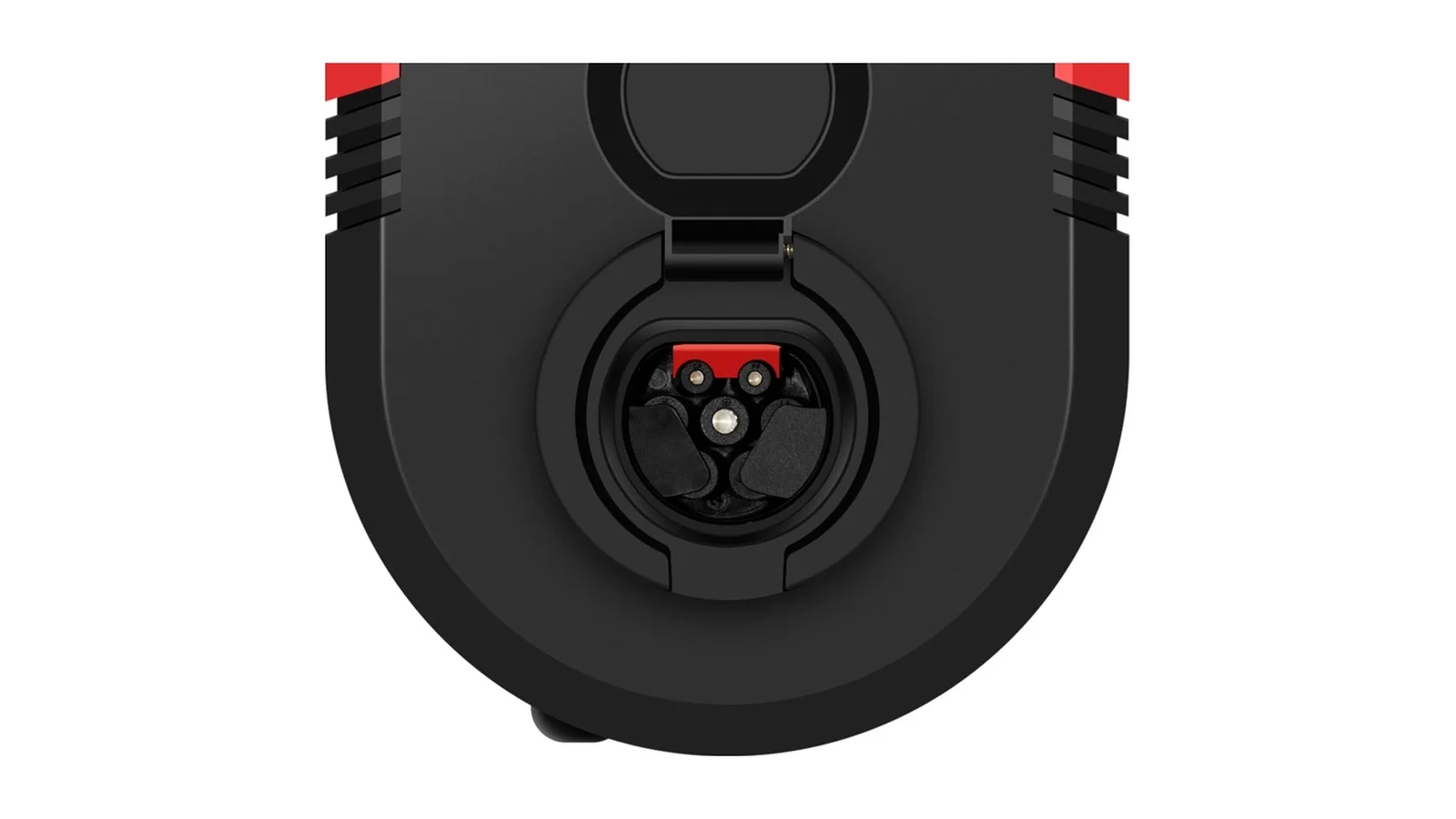

The EasyCharge with Socket is designed for versatility. By featuring a standard Type 2 socket, it is compatible with any independent Type 2 charging cable. This makes it a perfect choice for locations where different vehicles may need to charge, or where a socket version is preferred for a cleaner look when not in use.

Safety and Durability Guaranteed

Equipped with safe shutters for enhanced protection and an IP54/IK10 rated housing, this wallbox is built to withstand the elements and provide years of reliable service. The RFID card system ensures that access is strictly controlled, making it a secure choice for your home or business.

Optimized Charging Performance

Supporting up to 7.4kW power (32A on 1 phase), the EasyCharge offers an adjustable capacity between 8-16-25-32A. The inbuilt 6mA DC RCM provides essential protection, ensuring that every charging session is as safe as it is efficient.

Ideal For:

• Users who prefer a socket-based wallbox for universal compatibility with all Type 2 cables.
• Private or shared parking spaces requiring durable, secure, and easy-to-use charging points.

Charger Specifications
Feature	Value
Item Code	BW1P32ASB
SKU	100878
Working Voltage	230V ± 15%
Rated Current	32A (1-Phase)
Maximum Power	7kW
Charging Mode	Type 2
Rated Frequency	50Hz
Input/Output Voltage	230V±15%/1P+N+PE
Network Type	IT/TT/TN
RCD	AC 30mA+DC 6mA
RCBO	External type A RCBO if specially required
Protection	Overcurrent / Overvoltage / Undervoltage / Short-circuit / PE-ungrounded / Over-temperature
Status Indication	LED
User Interface	N/A
Connectivity	RS485
Communication Protocols	N/A
User Authentication	RFID card
Software Update	N/A
Load Balance	Home edition offline
IP-class	IP55
Operating Temperature	-30°C ~ 50°C
Net Weight	approx. 4.0 kg
Special Features	Safe Shutters, RFID-ready
