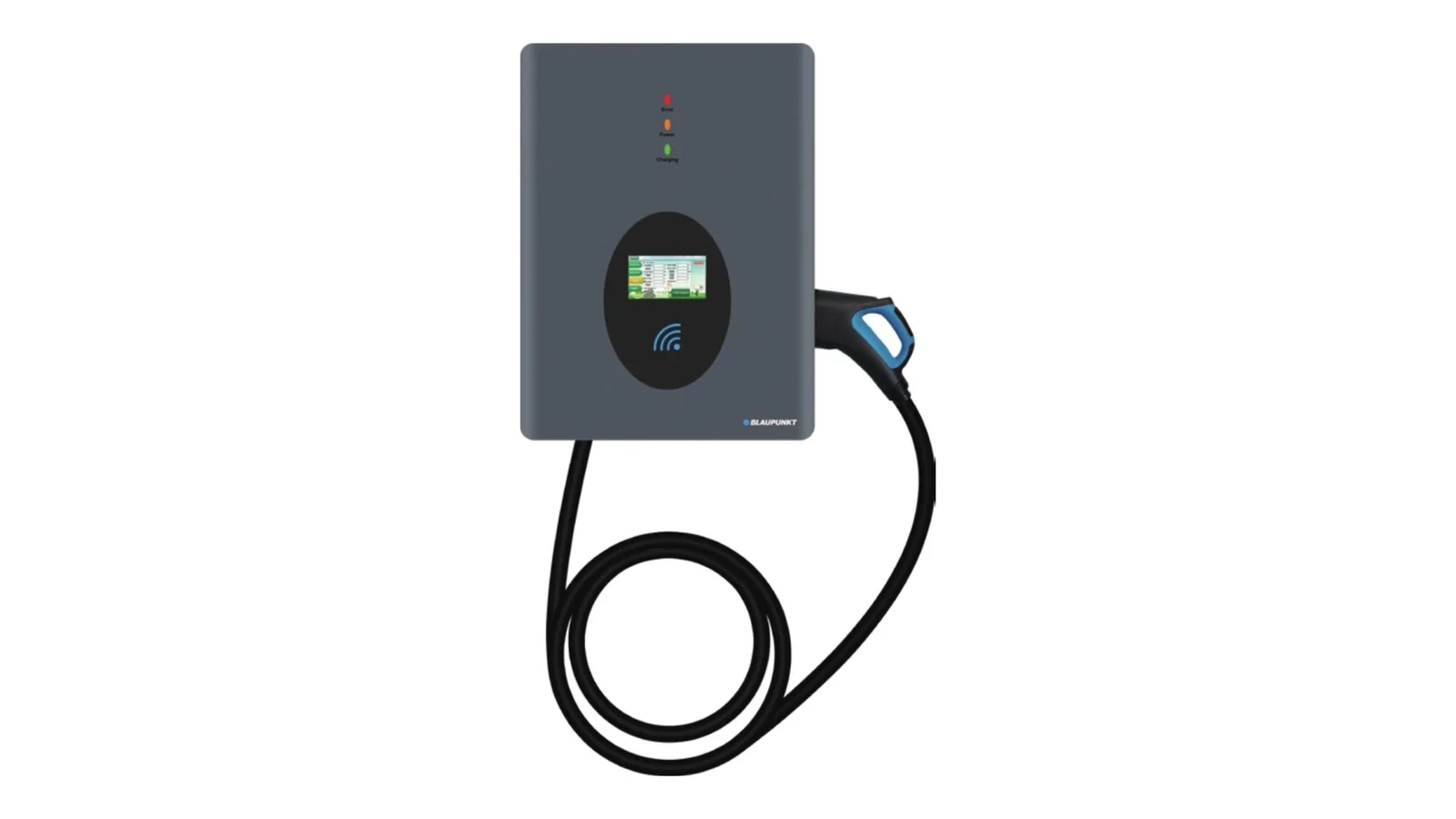

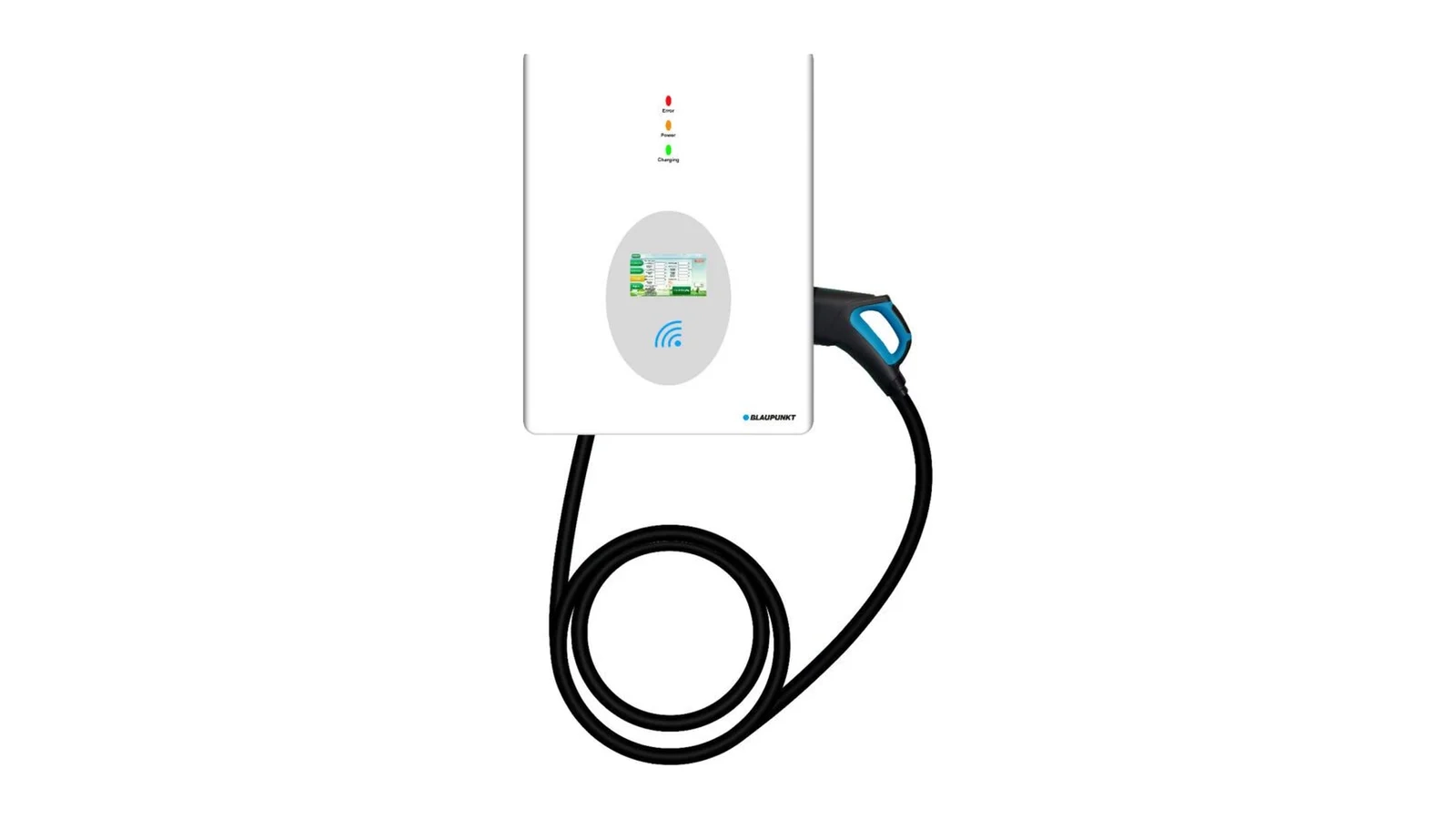

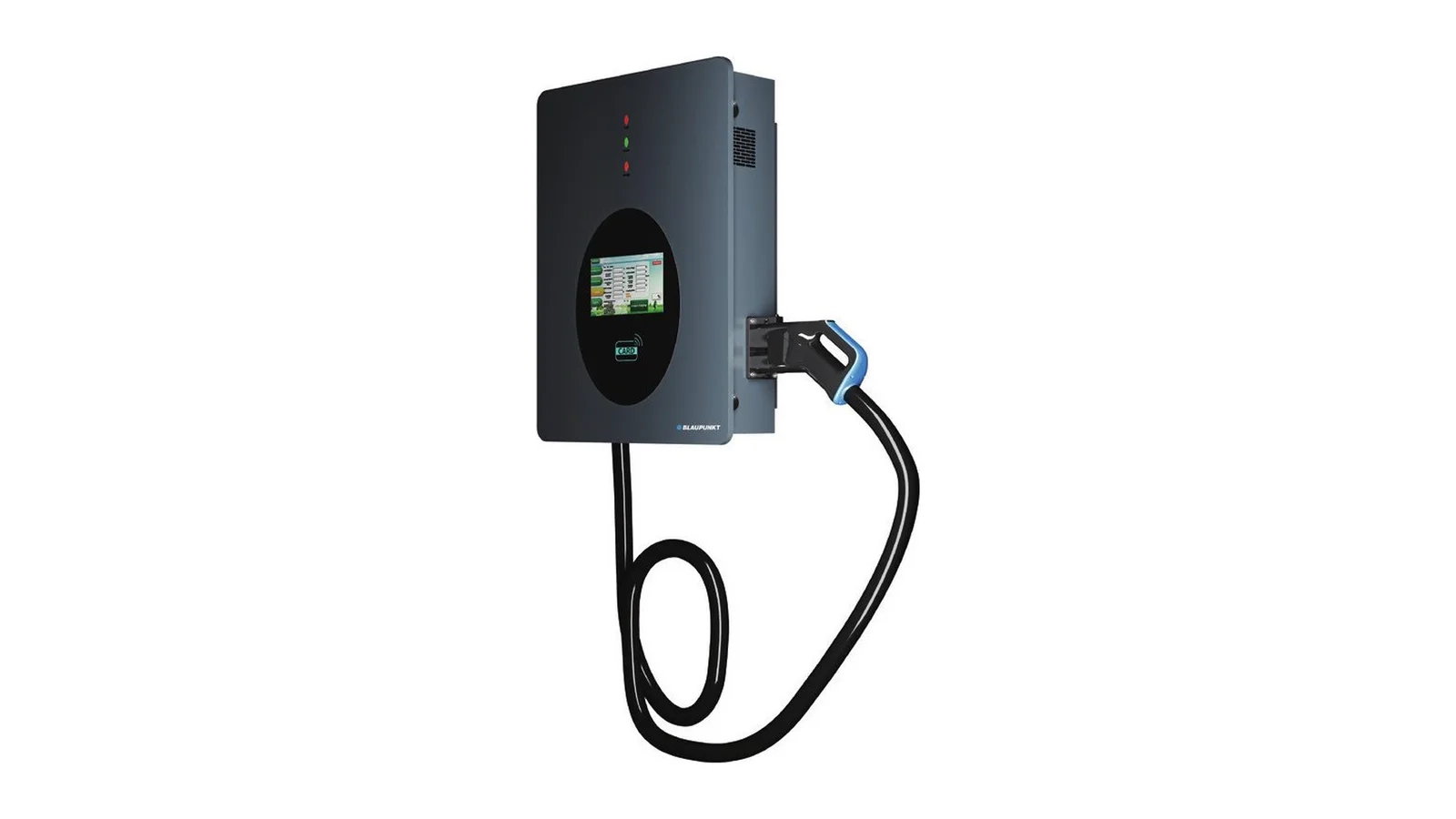

40 kW DC Charging Station for Commercial EV Charging

Powerful Performance in a Compact Design. The Blaupunkt 40 kW DC Charger delivers rapid, reliable charging in a compact footprint, ideal for mid-power applications. Designed for versatility, this charger provides efficient charging times suited for commercial environments like parking facilities, office complexes, and retail centers.

Description

Type 2 - 16A - 5meter Three Phase EV Charging CableDurability and Safety You Can Rely On

Engineered for performance and reliability, Blaupunkt’s 40kW DC Charger is built to last in any environment. Its robust design ensures dependable charging whether installed indoors or outdoors, and its IP54-rated enclosure provides superior protection against dust, water, and other elements, guaranteeing long-term performance under a wide range of weather conditions.

Advantages Monta Backend Integration

Effortless Setup: With pre-configuration, your charging station is ready to use right out of the box. No need for complex installations or technical adjustments – simply plug in and charge.

Enhanced Control and Monitoring: Through the Monta platform, gain full control over your charging sessions. Monitor energy usage, set charging schedules, and access detailed reports, all from a user-friendly interface.

Future-Ready Technology: Stay ahead with automatic updates and continuous feature enhancements via the Monta backend, keeping your charging station aligned with the latest technological advancements.

User-Friendly and Intuitive Operation

This DC charger is equipped with an easy-to-use interface, ensuring smooth operation for both new and experienced users. With RFID authorization, access to the charger is secure, allowing only authorized users to charge their vehicles. Additionally, the OCPP 1.6 compatibility ensures seamless integration into existing charging networks for remote monitoring and control.

5meter Three Phase EV Charging Cable

Ideal For:

• Commercial sites that require reliable, mid-speed EV charging solutions.
• Office buildings or small fleets that need faster charging than typical AC units.
• Locations seeking a balance of speed, affordability, and durability.

Charger Specifications

FeatureValue
Item CodeBPDC40KEU
SKU100938
Power Supply3P+N+PE
Rated Voltage (Input)400V/AC±15%
Rated Frequency50/60 Hz
Input Power Factor≥0.98(20% ~ 100% Load)
Total Harmonics≤5%(50% ~ 100% Load)
Rated Power40kW
Rated Current40A
Rated Voltage (Output)1000V/DC
Voltage Range150-1000V/DC
Constant Power Range300-1000V/DC
Max. Output Current125A
Current Range0-125A
Peak Efficiency≥95%(50% ~ 100% Load)
Current Regulation Accuracy≤±1%
Voltage Regulation Accuracy≤±0.5%
LED IndicatorsLED(Blue, Green, Red)
LCD Display10.1" Touch LCD Screen
Starting MethodsRFID Reader, Plug&Play, APP
Cable Length5m
LANYes
4GOptional
Certification StandardIEC 61851-1:2017, IEC 61851-23:2014, EN 61851-24:2014, EN 61851-21-1:2018
OCPPOCPP 1.6J
ProtectionShort Circuit, Over Load, Over Temperature, Leakage, Over and Under Input Voltage, Over and Under Output Voltage, Over-current
Operating Temperature-30°C ~ +55°C
Storage Temperature-40°C ~ +70°C
Humidity≤95% Dew Free
Altitude≤2000m
EnvironmentIndoor or Outdoor
Cooling MethodFan Cooling
NoiseGrade II
IP-classIP54
InstallationWall-mount or Pole-mount
Dimensions780*600*215mm (H*W*D)
Net Weight72kg
PackagingWooden case
Special FeaturesMonta Backend Integration, Compact Design
