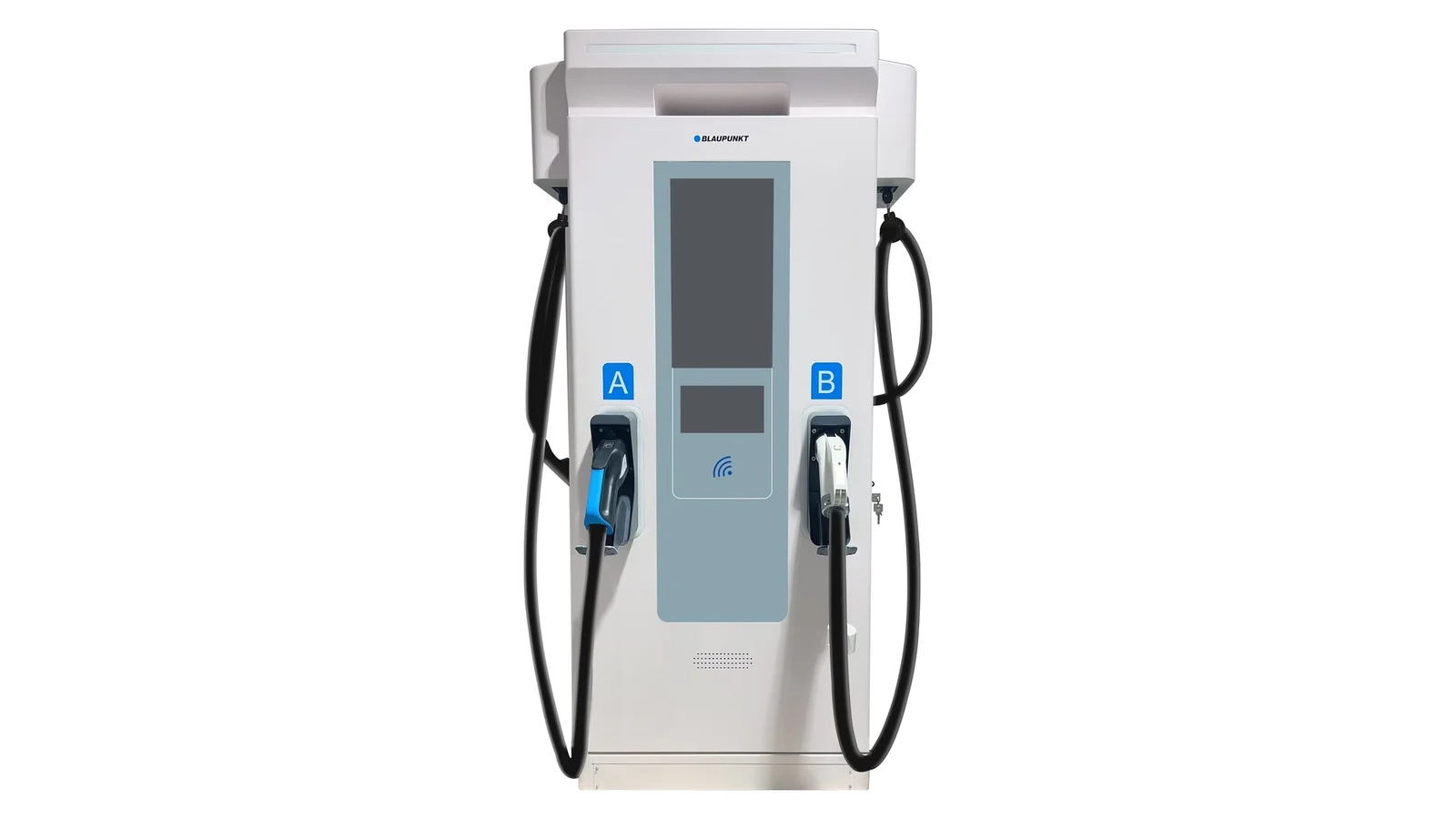

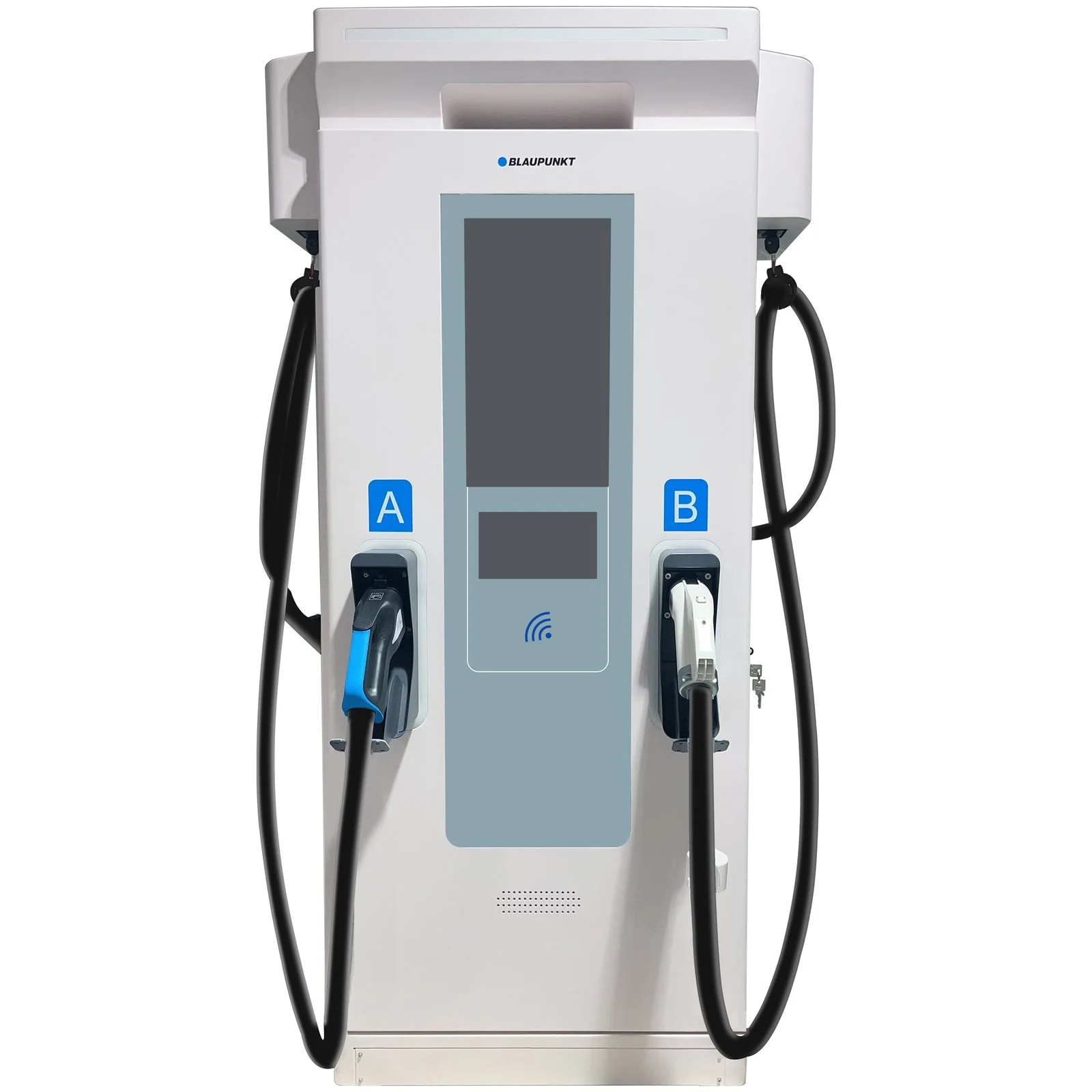

60 kW CCS2 and GB/T DC Fast Charging Station

Description

Versatility, Durability, and Safety Combined

For high-demand environments, Blaupunkt’s 60kW DC Mixed Charger delivers the perfect blend of power and versatility. Its dual-standard design featuring both CCS2 and GB/T connectors ensures that your charging infrastructure is accessible to a wider range of vehicles, including Chinese imports. Its IP54-rated enclosure ensures that it can handle any outdoor condition while maintaining peak performance. Built for heavy daily use, this charger is ideal for locations where fast and efficient charging is essential.

Efficient Maintenance with Plug-In Control Module

Our plug-in module integrates critical components into a single, replaceable unit, including the fuse, relay, terminal block, voltage detection module, DC contactor, switch power supply, diverter, electric energy meter, monitor wafer, main control panel, and insulation protection module. In case of malfunction, operators can simply swap out the module, eliminating the need for on-site specialized technicians.

Advantages of Monta Backend Integration

Effortless Setup
With pre-configuration, your charging station is ready to use right out of the box. No need for complex installations or technical adjustments – simply plug in and charge.

Enhanced Control and Monitoring
Through the Monta platform, gain full control over your charging sessions. Monitor energy usage, set charging schedules, and access detailed reports, all from a user-friendly interface.

Future-Ready Technology
Stay ahead with automatic updates and continuous feature enhancements via the Monta backend, keeping your charging station aligned with the latest technological advancements.

Smart Features for Advanced Management

Designed with advanced technology, the 60kW DC Charger is equipped with OCPP 1.6 for seamless network integration, enabling real-time monitoring, smart load management, and remote diagnostics. This ensures maximum efficiency and uptime, while the RFID access control guarantees secure use.

Ideal For:

Locations serving both local EVs and Chinese imports requiring GB/T connectivity.
High-traffic commercial areas needing fast turnaround times for EV charging.
Public charging hubs along highways where fast, reliable, and secure charging for all standards is essential.

Charger Specifications
Feature	Value
Item Code	BPDC60KEUGBT
SKU	100944
Power Supply	3P+N+PE
Rated Voltage (Input)	400V/AC±15%
Rated Frequency	50/60 Hz
Input Power Factor	≥0.98
Total Harmonics	≤5%(50% ~ 100% loading)
Rated Power	60kW
Rated Current	60A
Rated Voltage (Output)	1000V/DC
Voltage Range	150-1000V/DC
Constant Power Range	300-1000V/DC
Max. Output Current (Gun A)	200A
Max. Output Current (Gun B)	250A
Connector Type (Gun A)	CCS2
Connector Type (Gun B)	GB/T
Peak Efficiency	≥95%(100% loading)
Current Regulation Accuracy	≤±1%
Voltage Regulation Accuracy	≤±0.5%
LED Indicators	LED(Green, Blue, Red)
LCD Display	10.1" Touch LCD Screen
Starting Methods	POS, RFID Reader, Plug&Play, APP
Cable Length	5m
LAN	Yes
4G	Optional
Certification Standard (Gun A)	IEC 61851-1:2017, IEC 61851-23:2014, EN 61851-24:2014, EN 61851-21-1:2018
Certification Standard (Gun B)	GB/T 18487-2023, GB/T 27930-2023, GB/T 20234-2023
OCPP	OCPP 1.6J
Protection	Short Circuit, Over Load, Over Temperature, Leakage, Over and Under Input Voltage, Over and Under Output Voltage, Over-current
Operating Temperature	-30°C ~ +55°C
Storage Temperature	-40°C ~ +70°C
Humidity	≤95% Dew Free
Altitude	≤2000m
Environment	Indoor or Outdoor
Cooling Method	Fan Cooling
Noise	Grade II
IP-class	IP54
Installation	Floor-stand
Dimensions	19601040500 mm (HWD)
Net Weight	327kg
Packaging	Wooden case
Special Features	Monta Backend Integration, Mixed Connector Support
