EV Charging Levels Explained: Level 1, Level 2 and DC Fast Charging

As Electric Vehicles (EVs) are becoming more popular in the UAE, it is very important for EV owners to understand everything about EV charging. This is because different electric vehicles can be charged in different ways. EVs can be charged at home, at public charging stations, or at other authorised charging points. The charging speed may vary depending on the type of charging level you use. Some charging levels provide fast charging, while others offer moderate or slow charging. In this guide, we’ll understand the classification of EV charging levels, how to use them, which one is used the most, and which charging level is the most suitable for particular EVs.

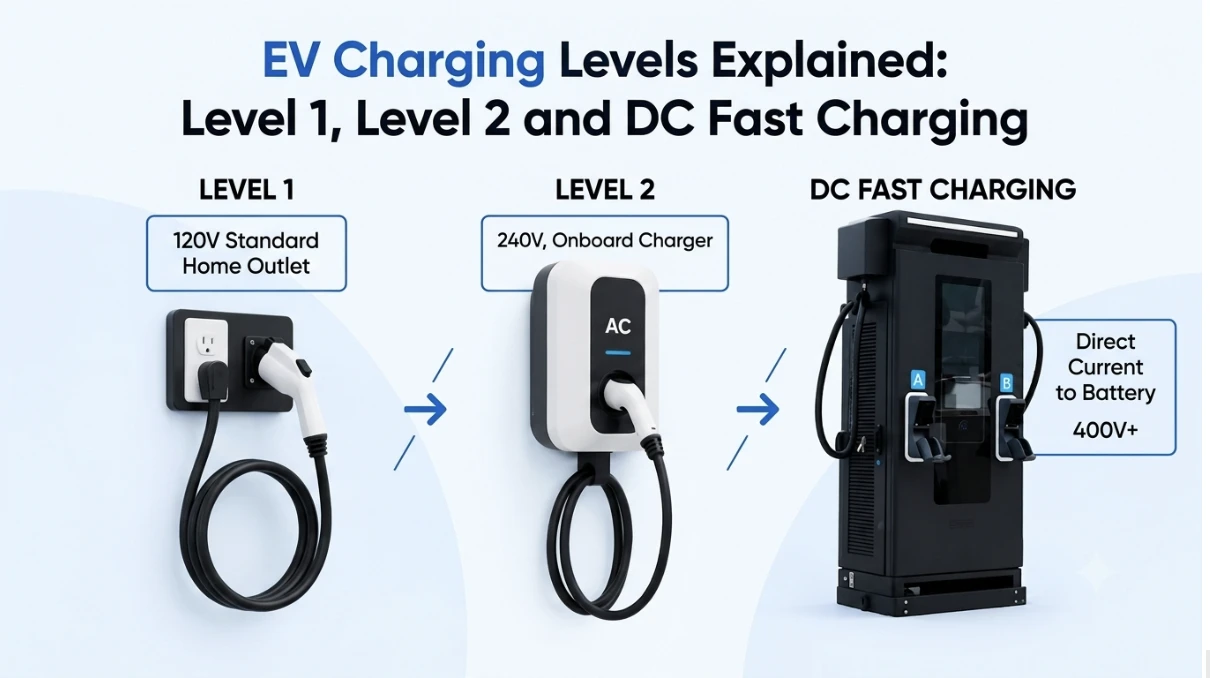

EV Charging Levels Explained :

Basically, there are three levels of EV charging

1. Level 1- Slow charging and mainly used as a wall socket.
2. Level 2 - Fast AC charging, convenient for residential areas, workplaces, and parking locations.
3. DC Fast charging - The Speediest one, basically best for road trips.

Level 1 Charging

Level 1 charging is the simplest way to charge your EVs, but it is also slow. It is typically made for residential use only. Home charging has become the most convenient option for EV owners. Power usage in the UAE is around 220 to 240V per charge, and it roughly delivers 2.3 to 3.7 kW (2,300 to 3,700 watts). A single charge can provide enough power for your vehicle to run about 3-4 miles. Level 1 charging is suitable for those drivers with short daily commutes who can leave their vehicles plugged in overnight. For those who travel around 30–40 miles per day, overnight Level 1 charging may not provide enough energy to replenish the amount consumed during the day. But it can also serve as a convenient backup option for visiting friends or staying at locations where faster charging facilities are not available. It is not expensive to use, but it is too slow for high-mileage drivers or anyone who needs a quick turnaround.

Level 2 Charging

Level 2 charging is the most favourable option for EV drivers. It can be installed both in personal places and public areas. Level 2 is usually powered by 240 volts of AC energy and offers much faster charging compared to Level 1. Level 2 chargers are usually used in residential areas and shopping centers, parking spaces, and offices; therefore, they can be considered the most accessible way to recharge EVs. The Level 2 EV charger is capable of delivering electric power ranging from 3.3 kW up to 19.2 kW. The distance covered by an EV per one hour of charging varies from 12 to 60 miles depending on the charger and vehicle being recharged. A full charge may last about 4 to 8 hours. Level 2 requires a specific charging station connected to a 240V AC power supply, and it also requires properly upgraded wiring. Due to this, its installation can become slightly expensive.

Level 3 Charging

Level 3 is also known as DC fast charging, and it is known for its fast charging. It is mostly found at authorized public charging stations, especially those designed for fast charging. Unlike Level 1 and Level 2, where the charger converts AC power into DC before sending it to the vehicle’s battery, Level 3 (DC fast charging) supplies DC power directly to the battery. This allows the EV to charge much faster and makes it ideal for quick top-ups during long journeys. DC fast chargers typically provide 50 to 350 kW of power, depending on the charging station and the EV. It can even charge a low-battery vehicle to up to 80% in just 20-40 minutes. Its charging speed totally depends on the type of EV and battery health. Even if a charging station can deliver high power, your car may not be able to accept all of it. So, it's better to choose a charger that matches your vehicle's charging capability rather than simply choosing the charger with the highest power rating. For many EV owners, a Level 2 charger at home combined with DC Fast Charging for longer journeys can provide a convenient balance. Once you have the right charging setup, charging your EV can easily become part of your normal daily routine rather than something you have to constantly plan around. Must Read: AC vs DC EV Charging: What is the Difference?

Comparing Different EV Charging Levels

Conclusion

Choosing the right EV charger mainly depends on how you drive and how long the vehicle stays parked. Level 1 is the simplest option and can be used for light daily driving or as a backup when you don’t have access to a charger. Level 2 is a more practical option for regular charging, especially for those who drive longer routes; it is faster than Level 1 charging. DC is most useful for longer trips and when you need to add an amount of range in a short time. One important thing to remember is that the EV itself also determines how quickly it can charge. If you are in search of high-quality EV charging equipment in the UAE, check out AC and DC charging options available at Blaupunkt EV.
