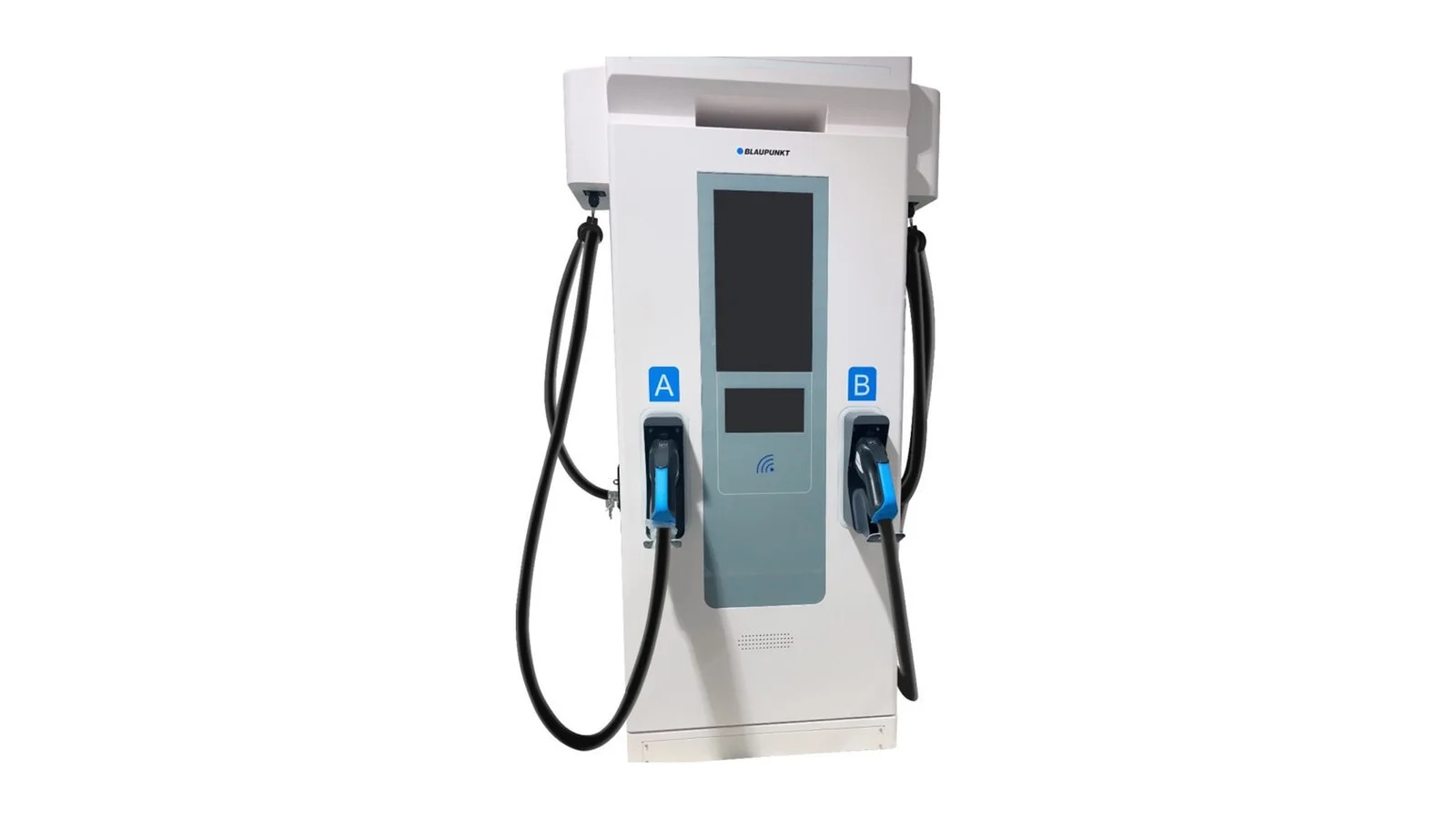

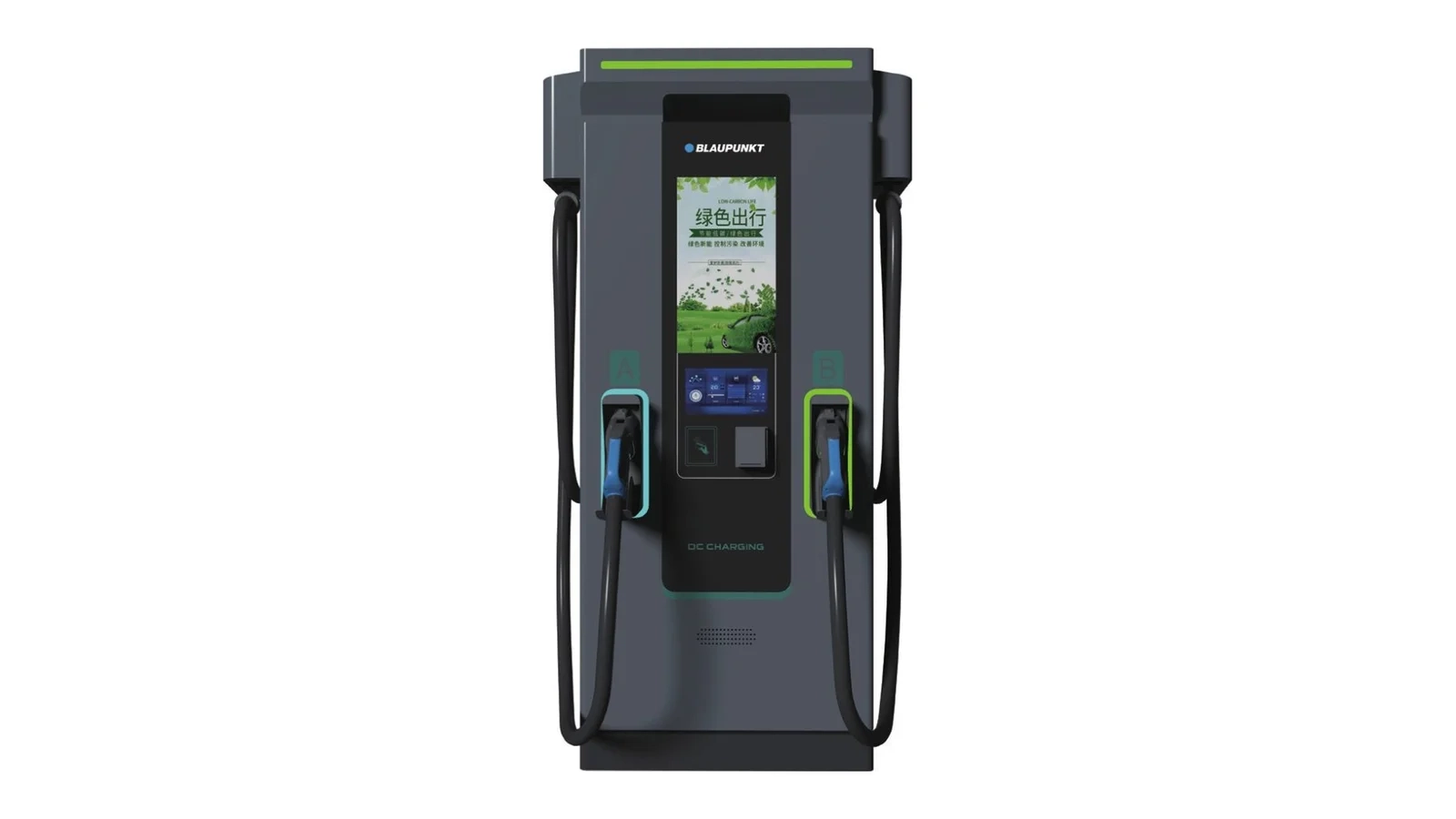

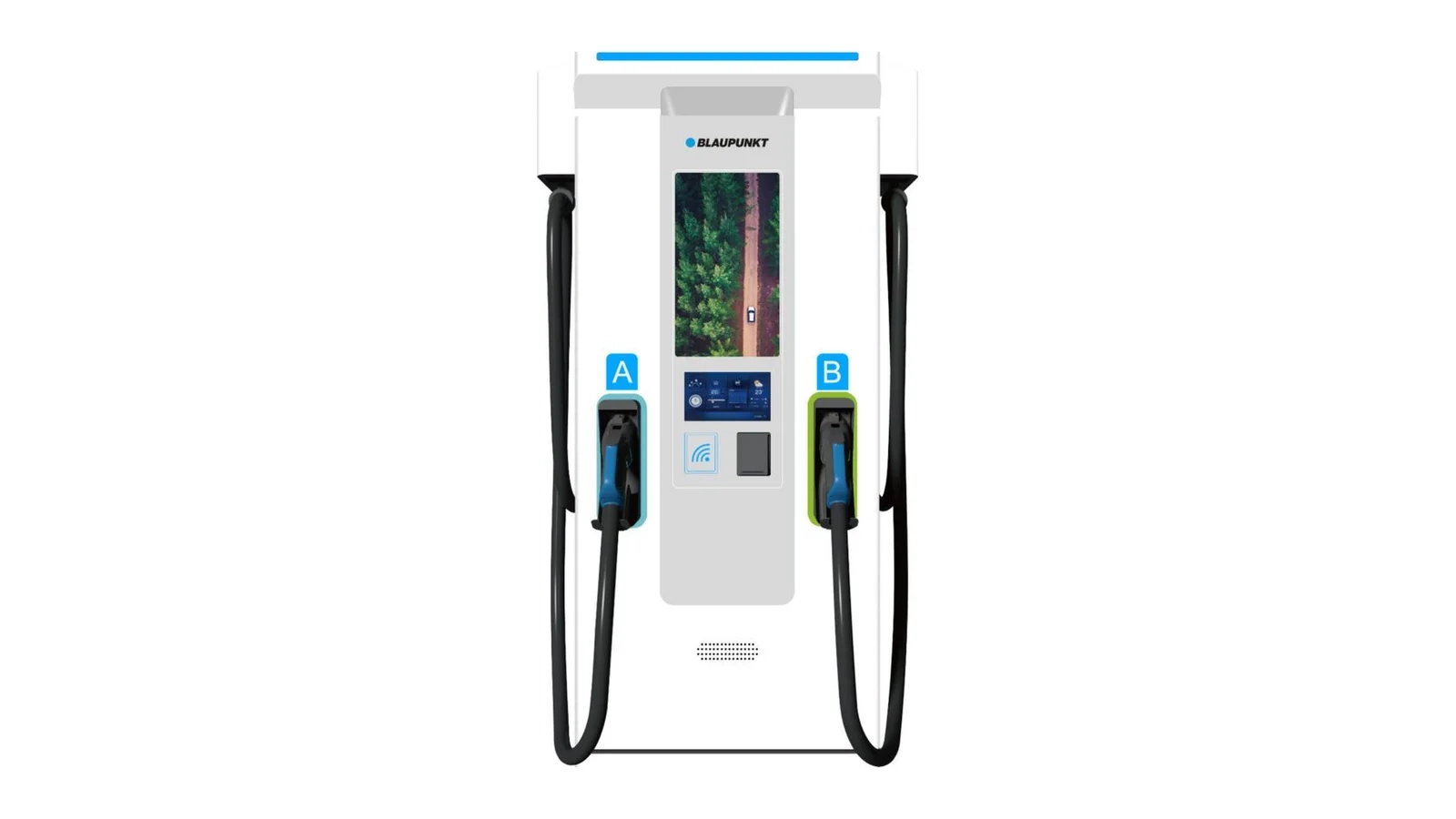

Maximum Power for High-Intensity Environments. The Blaupunkt 120 kW Ultra DC Charger is designed to meet the demands of high-traffic locations where charging speed and capacity are paramount. With ultra-fast charging capabilities, this charger is perfect for service stations, highway rest stops, and fleet depots.
Power, Durability, and Safety CombinedFor high-demand environments, Blaupunkt’s 120kW DC Charger delivers the perfect blend of power and durability. Its IP54-rated enclosure ensures that it can handle any outdoor condition while maintaining peak performance. Built for heavy daily use, this charger is ideal for locations where fast and efficient charging is essential.
Efficient Maintenance with Plug-In Control Module
Our plug-in module integrates critical components into a single, replaceable unit, including the fuse, relay, terminal block, voltage detection module, DC contactor, switch power supply, diverter, electric energy meter, monitor wafer, main control panel, and insulation protection module. In case of malfunction, operators can simply swap out the module, eliminating the need for on-site specialized technicians.
Advantages of Monta Backend Integration
Effortless Setup
With pre-configuration, your charging station is ready to use right out of the box. No need for complex installations or technical adjustments – simply plug in and charge.
Enhanced Control and Monitoring
Through the Monta platform, gain full control over your charging sessions. Monitor energy usage, set charging schedules, and access detailed reports, all from a user-friendly interface.
Future-Ready Technology
Stay ahead with automatic updates and continuous feature enhancements via the Monta backend, keeping your charging station aligned with the latest technological advancements.
Smart Features for Advanced Management
Designed with advanced technology, the 120kW DC Charger is equipped with OCPP 1.6 for seamless network integration, enabling real-time monitoring, smart load management, and remote diagnostics. This ensures maximum efficiency and uptime, while the RFID access control guarantees secure use.
Ideal For:
Charger Specifications |
|
| Feature | Value |
| Item Code | BPDC120KEU |
| SKU | 100941 |
| Power Supply | 3P+N+PE |
| Rated Voltage (Input) | 400V/AC±15% |
| Rated Frequency | 50/60 Hz |
| Input Power Factor | ≥0.98 |
| Total Harmonics | ≤5%(50% ~ 100% loading) |
| Rated Power | 120kW |
| Rated Current | 120A |
| Rated Voltage (Output) | 1000V/DC |
| Voltage Range | 150-1000V/DC |
| Constant Power Range | 300-1000V/DC |
| Max. Output Current (Gun A) | 200A |
| Max. Output Current (Gun B) | 250A |
| Connector Type (Gun A) | CCS2 |
| Connector Type (Gun B) | CCS2 |
| Peak Efficiency | ≥95%(100% loading) |
| Current Regulation Accuracy | ≤±1% |
| Voltage Regulation Accuracy | ≤±0.5% |
| LED Indicators | LED(Green, Blue, Red) |
| LCD Display | 10.1" Touch LCD Screen |
| Starting Methods | POS, RFID Reader, Plug&Play, APP |
| Cable Length | 5m |
| LAN | Yes |
| 4G | Optional |
| Certification Standard (Gun A) | IEC 61851-1:2017, IEC 61851-23:2014, EN 61851-24:2014, EN 61851-21-1:2018 |
| Certification Standard (Gun B) | IEC 61851-1:2017, IEC 61851-23:2014, EN 61851-24:2014, EN 61851-21-1:2018 |
| OCPP | OCPP 1.6J |
| Protection | Short Circuit, Over Load, Over Temperature, Leakage, Over and Under Input Voltage, Over and Under Output Voltage, Over-current |
| Operating Temperature | -30°C ~ +55°C |
| Storage Temperature | -40°C ~ +70°C |
| Humidity | ≤95% Dew Free |
| Altitude | ≤2000m |
| Environment | Indoor or Outdoor |
| Cooling Method | Fan Cooling |
| Noise | Grade II |
| IP-class | IP54 |
| Installation | Floor-stand |
| Dimensions | 1960*1040*500 mm (H*W*D) |
| Net Weight | 368kg |
| Packaging | Wooden case |
| Special Features | Monta Backend Integration, Ultra-Fast Charging |
